Roof car spoiler, also known as a roof spoiler or roof wing, is a triangular component installed on the roof of a car. Its main purpose is to enhance aerodynamic stability, improve fuel economy by reducing air resistance, and ensure the stability of the car when driving at high speeds. In addition, the car roof wing also has the function of beautifying the car body, adding a dynamic visual effect to the vehicle and enhancing the overall beauty.
The design of roof car spoiler is inspired by the dorsal fin of fish in nature, which improves the performance of the car by reducing resistance. It can greatly reduce the impact of wind resistance on the car when it is driving at high speed, thereby reducing the drag coefficient and reducing air resistance.
The roof car spoiler increases the aerodynamic balance of the vehicle, improving handling and stability, especially at high speeds and in fast turns. This helps reduce vehicle drift at high speeds, making the vehicle easier to control.
Although roof car spoiler itself does not directly increase the rigidity of the vehicle body, it indirectly improves the overall stability of the vehicle body by optimizing the aerodynamic performance of the vehicle body. This helps to reduce the body roll when driving at high speeds and turning quickly, thereby improving the vehicle's handling performance.
Rear wing car spoiler is an aerodynamic component mounted on the rear of a vehicle, usually located above the trunk lid or rear bumper, and its design is inspired by the spoilers of racing cars. Unlike roof car spoilers, rear wing car spoilers usually have a more complex wing structure and are designed to increase downforce on the rear axle by generating reverse lift.
By changing the direction and speed of airflow, the rear wing can generate downward pressure, offsetting the lift generated by the vehicle at high speeds, thereby improving stability.
The design of the rear wing car spoiler follows the principles of aerodynamics, allowing the vehicle to be closer to the ground when driving at high speeds, enhancing the sense of control.
The rear wing car spoiler can also effectively reduce air resistance and improve fuel economy.
The popularity of roof car spoiler began in the 1980s. As the hatchback market expanded, manufacturers began to pay attention to optimizing roof airflow. For example, the Audi Quattro model in 1984 tried an integrated roof car spoiler for the first time.
Today, roof car spoilers have become standard on SUVs and hatchbacks. For example, the Audi A3 Sportback reduces its drag coefficient to 0.29 with its streamlined roof car spoiler.
The rear wing car spoiler design originated in the aviation field and was introduced to racing in the 1960s. F1 racing cars began to widely use large tail wings, and the Ford Mustang series was the first mass-produced car equipped with an adjustable tail wing in 1978, marking the beginning of its civilian use.
The inspiration for rear wing car spoilers comes from airplanes and was first used in racing competitions. In the 1980s, Mazda's racing cars used rear wing car spoiler for the first time in F1 competitions, which significantly improved the vehicle's grip and stability. This design was subsequently widely adopted.
Sports roof car spoilers have sharp edges, such as the one on the Mercedes-AMG A45, which is angled 45 degrees to optimize the airflow separation point. This type of design reduces wind resistance and can reduce the dust accumulation area on the roof by up to 15%.
Low and smooth, commonly seen on the Volkswagen Golf GTI, it balances downforce and wind resistance.
Generally speaking, the material used for roof car spoiler is ABS plastic.
Lightweight, cheap, highly malleable, and able to support complex surfaces.
Poor UV resistance, insufficient strength, and may deform under extreme conditions.

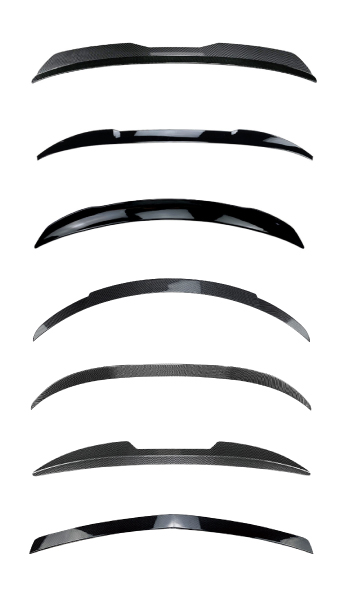

The main materials of rear car wing spoilers are fiberglass, carbon fiber, ABS plastic, and carbon fiber is the most commonly used material for racing rear wings.
High strength, lightweight and corrosion resistant.
The cost is high and maintenance is difficult.
Optimize roof airflow separation and reduce turbulent drag.
Reverse lift is generated through high-speed airflow, increasing the downforce on the rear axle.

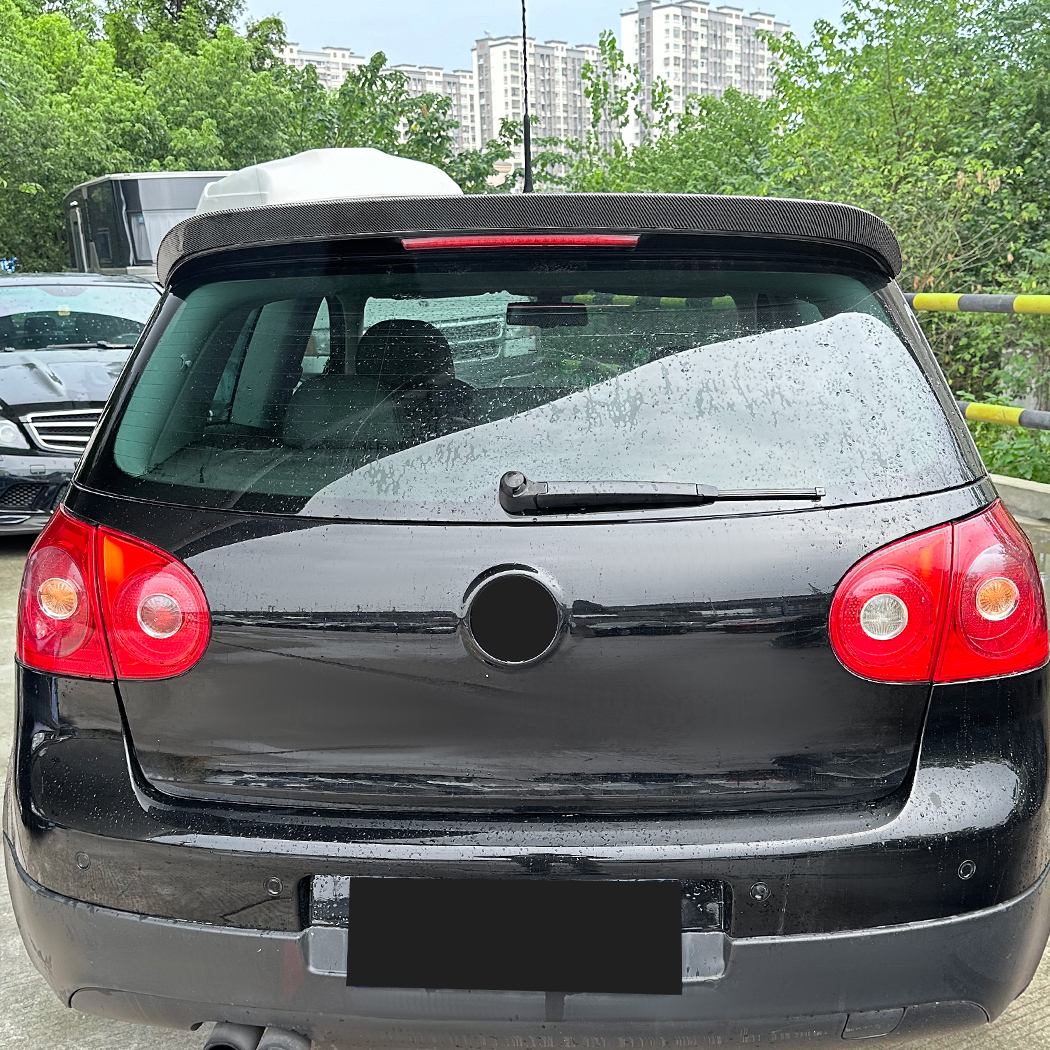

Roof car spoiler has a significant effect on hatchbacks: for example, after the Volkswagen Golf GTI was installed with a roof car spoiler, the drag coefficient dropped from 0.31 to 0.29.
The rear wing car spoiler contributes over 70% of downforce at a speed of 150km/h, but has an impact on fuel economy of 5-8%.
Generally speaking, both rear wing car spoiler and roof car spoiler can be installed on cars. Today we will focus on which type of rear wing car spoiler and roof car spoiler is more suitable for hatchbacks and sedans.
Rear wing car spoiler is usually installed on sedans, such as the Mercedes Benz A Class W177 (Sedan) series.
Roof car spoilers are usually installed on hatchbacks and SUV series, such as the Audi A3 8Y Sportback series. Of course, some roof car spoilers are also installed on sedan series, such as the A3 S3 8V Hatchback series.
At AMP-Z, we have a skilled in-house design team dedicated to fulfilling your auto parts customization needs. For example: you provide the design, and the factory is responsible for production and putting your brand on it.
Flexibly supports the entire process of product design, material selection, packaging customization, etc.
Finished products are rigorously inspected and tested to ensure they meet quality standards.
We are committed to customer needs and have a strong production line. We can produce products very quickly and will not delay delivery due to increased orders.
Protect customer intellectual property and ensure that designs are not leaked.
Roof car spoilers are usually installed above the rear window of the vehicle or at the rear of the roof.
When installing the roof car spoiler, pay attention to aligning the roof edge.
The correct installation position of the rear wing car spoiler should be at the rear end of the vehicle's trunk lid, strictly following the original vehicle's aerodynamic design and ensuring left-right symmetry and moderate height.
Rear wing car spoiler usually requires drilling holes in the trunk lid, and the bracket should be checked regularly to prevent loosening.
The modern roof car spoiler adopts a gradient thickness design, which can reduce roof turbulence by 9% at a speed of 120km/h on the Volkswagen GTI.
The large rear wing car spoiler increases the visual width of the car by 15% while providing real aerodynamic benefits.
·Locate the punching point: put the rear wing car spoiler in place and mark the bolt hole position.
·Install the bolt: insert the bolt from the top of the rear wing car spoiler, pass through the hole and fix it with a nut on the inside. You can add a gasket to enhance stability.
·Sealing and waterproofing: apply waterproof sealant (such as silicone) around the bolt to prevent rainwater from seeping in and causing rust.
·Reinforcement inspection: after tightening the nut, check whether the rear wing car spoiler is firm and there is no shaking.
Use an electric drill to drill holes at the marked locations. The hole diameter must match the bolts. Be careful to avoid internal wiring or structures when penetrating the trunk lid.
·Positioning and measuring: Use measuring tools to ensure that the roof wing is centered and aligned with the body lines.
·Clean the installation surface: Use a detergent to thoroughly clean the roof installation area to remove oil and dust, and ensure that there are no impurities when pasting.
·Fixing: Apply glue evenly or use adhesive, press and fit after aligning the position, and apply pressure to ensure there are no bubbles.
·Adjustment and reinforcement: Let it stand and cure, and avoid vibration or rain during the period.
FixingFor example, the BMW M4 high-performance model adopts a composite fixing method: gluing and hidden bolts, which takes into account both aesthetics and strength.
·Regular cleaning: clean the dust, debris and oil on the surface of the rear wing regularly to keep it clean and prevent corrosion.
·Check the fixing: make sure the screws of the rear wing are not loose and the parts are firmly connected to maintain driving stability and safety.
·Regular cleaning: Avoid using high-pressure water guns to directly hit the joints.
·Installation stability check: The precursor to the failure of 3M glue is whitening and curling of the edges, which needs to be replaced in time.
The market demand for rear wing car spoiler continues to grow, mainly affected by factors such as environmental protection and energy saving, personalized needs and performance improvement.
The most widely used area for rear wing car spoiler is racing. Imagine how cool it would be to own a car with a cool rear wing.
Consumers' increasing requirements for vehicle appearance and comfort have prompted automakers to pay more attention to aesthetics and practicality in roof car spoiler design, which is mostly used by family cars.
Family car preferences are mainly influenced by factors such as the number of family members, travel needs, economic strength and driving habits, and most of them choose roof car spoiler.
The BMW M4 GTS rear wing is a combination of an aluminum alloy bracket and a carbon fiber wing surface, which can generate 82kg of downforce at 250km/h.
The top wing of the Audi RS3 Sportback 8Y is integrated with a high-mounted brake light, which improves aerodynamic efficiency by 12% while meeting regulatory requirements.
There are essential differences between roof car spoilers and rear wing car spoilers in terms of functional positioning, material selection and applicable scenarios. Home users prefer roof car spoilers to balance cost and practicality, while racing enthusiasts should invest in professional rear wing car spoilers to gain an advantage on the track. In the future, with the development of active aerodynamic technology, roof car spoilers and rear wing car spoilers will become better and better in performance.
Q1：What is the benefit of spoiler roof in a car？
A1：The main purpose of installing a roof car spoiler is to reduce drag and improve fuel efficiency, and it looks cooler in terms of decoration.
Q2：Notes on installing roof car spoiler
A2：The installation process of a roof car spoiler is relatively complicated and requires precise measurement and positioning to ensure its optimal position on the vehicle.
Q3：Can I install the rear wing spoiler myself?
A3：The basic adhesive roof car spoiler can be installed by yourself according to the installation instructions, but the rear wing car spoiler that involves drilling is recommended to be installed professionally, as incorrect positioning may cause deformation of the trunk.
Q4：How to tell if the rear wing spoiler is working properly?
A4：When conducting lane change tests at 80-120km/h on a dry road, an effectively working rear wing spoiler should reduce the body swing by 15-20%.
