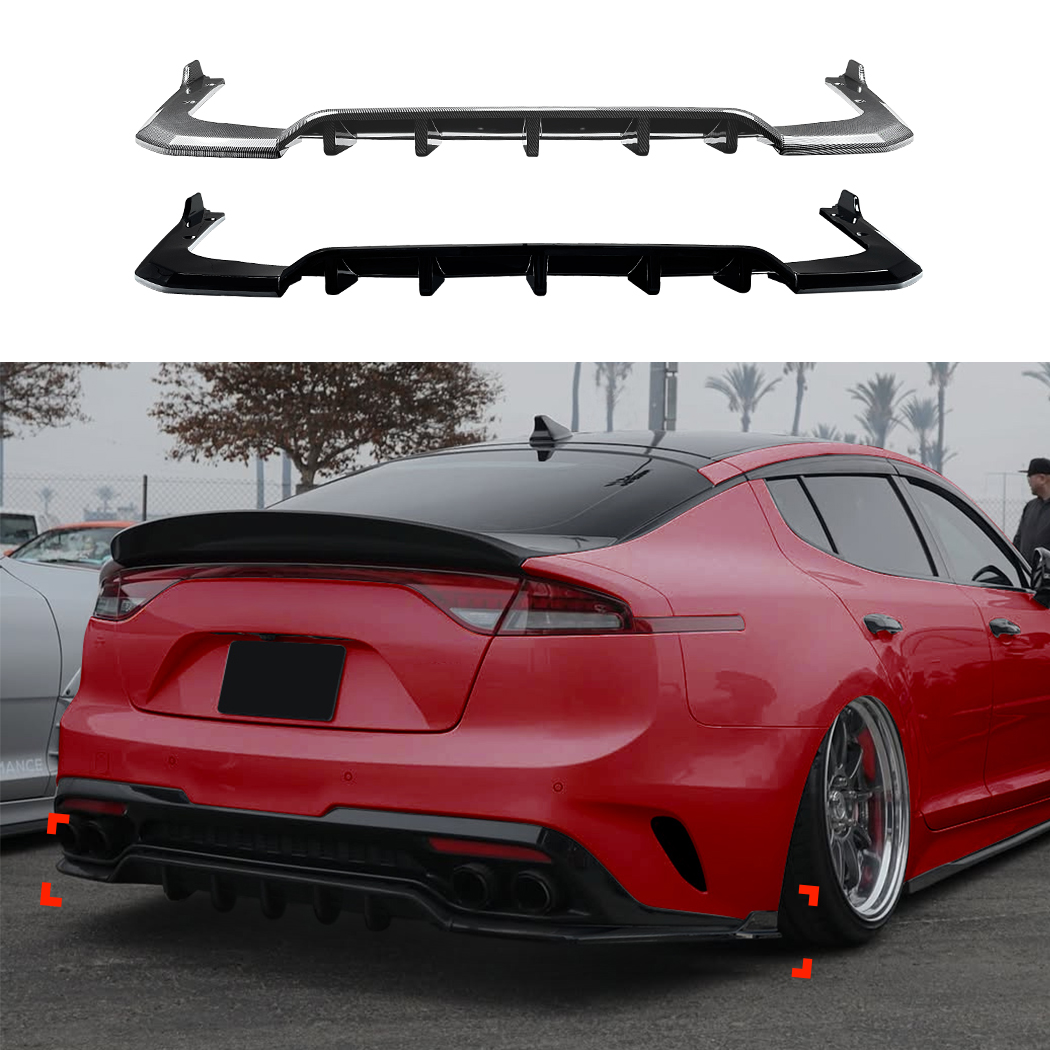

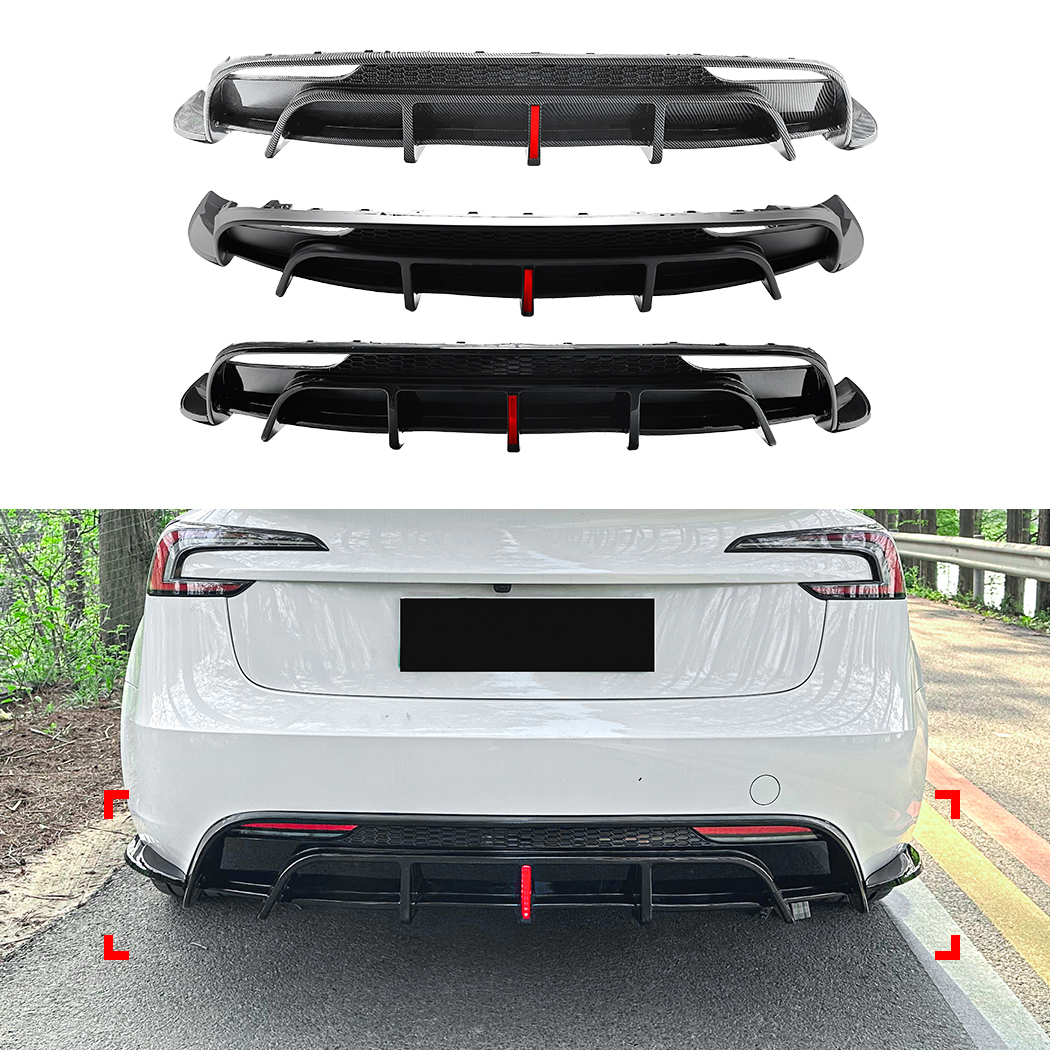

A rear diffuser is an aerodynamic device placed at the rear underside of a vehicle. Its primary function is to manage the airflow beneath the car, reducing drag and creating downforce. This improvement in airflow leads to better stability at high speeds, which is crucial for both performance cars and those looking to optimize their driving experience. When driving at high speeds, the air under the car moves faster than the air above it. This creates a high-pressure area underneath and a low-pressure zone at the rear. A rear diffuser helps to balance these pressures, smoothing the transition of air from the underside to the rear, which in turn helps to keep the car planted to the road.
The rear diffuser works by manipulating the airflow beneath the vehicle to reduce turbulence and drag. It does this by accelerating the airflow beneath the car as it exits at the back. This helps to create a low-pressure zone, which "sucks" the car down towards the road, improving grip and handling. Essentially, the diffuser works by increasing downforce without significantly increasing drag.A well-installed rear diffuser can lower the drag coefficient of your vehicle, making it more fuel-efficient and providing more stability at higher speeds, especially when cornering.
Reduced Drag: The most significant benefit of a rear diffuser is its ability to reduce drag. By streamlining the airflow beneath your car, a rear diffuser reduces the resistance that air creates when moving over the surface. A vehicle with less drag can accelerate more quickly, achieve higher top speeds, and use less fuel in the process. Some studies have shown that rear diffusers can reduce drag by up to 5-7%, which might not sound like much, but it can significantly improve both performance and fuel efficiency.
Increased Downforce: Downforce is the force that pushes the car downward toward the road, improving tire grip. This is especially crucial for high performancevehicles and those driven at high speeds. A diffuser creates a high-speed air flow underneath the car, generating downforce that improves traction and handling, particularly when cornering at high speeds.
The stability benefits of a rear diffuser are particularly evident in high-speed driving. When a car reaches higher speeds, the air beneath it flows more rapidly, which can lead to the vehicle lifting slightly (especially at the rear). This lift reduces traction and can cause the car to become unstable. A rear diffuser helps by preventing this lift. It manipulates the airflow under the car, ensuring that the rear stays planted on the ground, which provides better stability and improved control, especially when cornering or changing lanes at high speeds.
For many car enthusiasts, the visual upgrade that a rear diffuser provides is just as important as the performance improvements. A rear diffuser adds an aggressive, sportier look to your vehicle, giving it a more purposeful and modern appearance. Whether you’re driving a performance car or a daily commute.
Before you begin the installation process, ensure you have all the necessary tools and materials at hand. The right tools will make the process smoother, and using the correct materials will ensure a durable and secure installation.
Scissors: For cutting the 3M tape or any adhesive material into smaller, more manageable pieces.
Socket Wrench & Screwdriver: To remove existing bolts or clips from the original diffuser.
Trim Removal Tool: Optional, but useful to avoid damaging your vehicle”s paint or trim during removal or installation.
Rubber Mallet (Optional): To gently tap parts into place without causing damage.
3M Double-Sided Tape: This is typically included with your diffuser, but it's always a good idea to have extra. For stronger adhesion, use 1-inch wide 3M tape.
Adhesive/Sealant: Depending on the diffuser you’re installing, you may need to apply additional adhesive to ensure a secure bond.
Not all rear diffusers are made the same, and selecting the right one for your vehicle is crucial. Before purchasing, make sure to:
Diffusers are often model-specific, so ensure the one you choose is designed for your car's make and model. Some manufacturers provide a guide or compatibility chart for this purpose.
OEM (original equipment manufacturer) diffusers are designed specifically for your vehicle and tend to fit perfectly. Aftermarket diffusers can provide more customization options and may be cheaper, but they might require some modifications for perfect fitment.

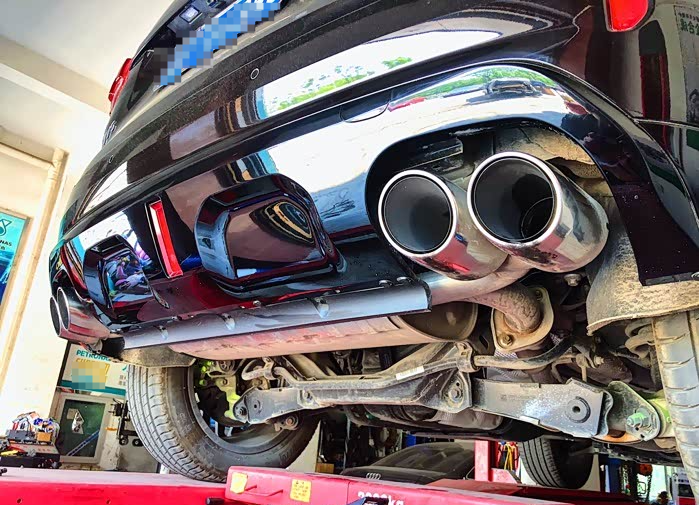

Once you have your tools and materials ready, the next step is preparing your vehicle. This is a crucial step to ensure that the installation goes smoothly.

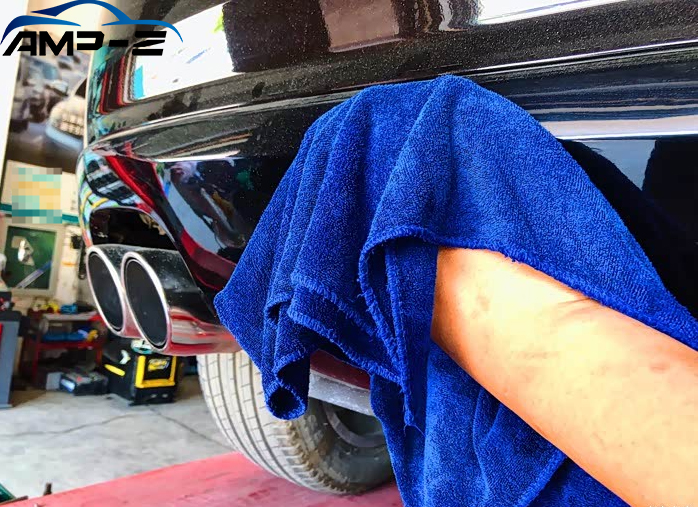

The area where the diffuser will attach must be free of dirt, grime, or grease. Use an alcohol-based solution to wipe down the rear bumper or underside.
Make sure the area is completely dry before applying any adhesive. Moisture can interfere with the bond and lead to the diffuser falling off prematurely.
If you're working under your car, always use a jack stand to lift your vehicle safely. Never rely solely on a hydraulic jack.
If you’re replacing an old diffuser or modifying your car, you’ll need to remove the existing one. This step is necessary to ensure that the new diffuser fits securely and correctly. The process can vary slightly depending on your car model, but here are general instructions.
Socket Wrench & Screwdriver：To remove bolts and screws.
Trim Removal Tool (Optional)：This is a helpful tool to avoid scratching or damaging the bumper during removal.

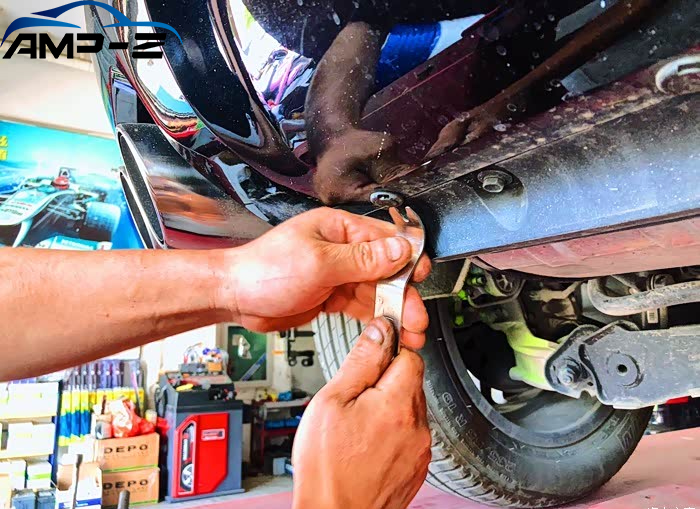

1.Locate the Bolts: The original diffuser is typically secured with bolts or screws. These are usually located along the edges or underneath the car.
2.Unscrew and Remove: Use a socket wrench or screwdriver to carefully unscrew the bolts. Keep the bolts in a safe place for reinstallation.
3.Unclip the Diffuser: Many diffusers are also clipped into place. Start by removing any plastic clips holding the diffuser in place. Be gentle to avoid damaging the clips or the bumper.
4.Take Your Time: If your diffuser is stubborn or stuck, avoid applying excessive force. Use a trim removal tool to gently pry it off, working around the edges and being careful not to crack or damage the plastic parts.
5.Clean the Area: Once the old diffuser is removed, clean the area thoroughly to remove any leftover residue or adhesive from the previous diffuser.
With the old diffuser removed, you can now prep your new diffuser for installation. It’s essential to take the time to prepare the diffuser and ensure it will fit properly.
1.Align the Center Section: Start by positioning the center of the diffuser against the bumper or under the rear of the car. It should sit flush with the vehicle’s body.
2.Temporary Tape Placement: Apply some tape (like 3M double-sided tape) on the back of the diffuser to hold it in place temporarily. This will help ensure that the diffuser doesn’t shift or fall while you work on securing it.

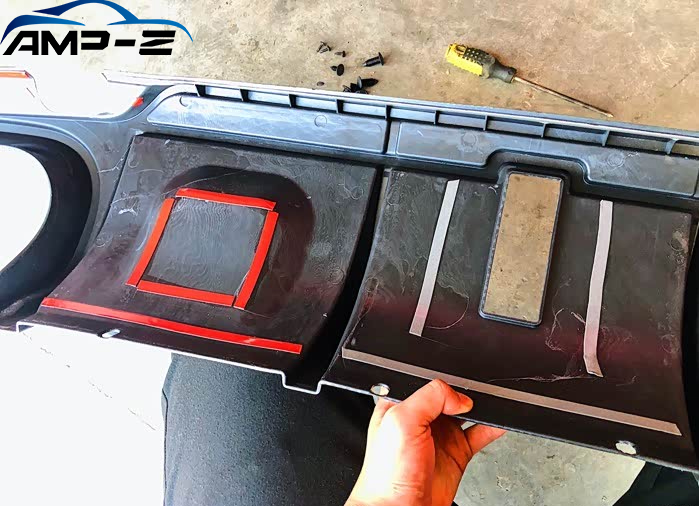

1.Cut the 3M Tape: Using scissors, cut the double-sided 3M tape into smaller, manageable pieces. This will help with more precise application to the rear diffuser.
2.Apply the Tape: Carefully apply the tape around the edges and back of the diffuser, ensuring there’s enough for a secure bond. This adhesive tape will help keep the diffuser in place before you screw or bolt it down.
3.Test Fit: Before fully securing the diffuser, perform a test fit by lightly pressing it against the car. Make sure it aligns perfectly with the rear bumper.
Once the diffuser is in position and the adhesive is applied, it’s time to install the diffuser permanently. Here’s how to do it:
1.Remove the Backing from the Tape: Carefully peel the backing off the 3M tape that’s been applied to the diffuser. Take your time to ensure the tape remains intact and doesn’t stick prematurely.
2.Press the Diffuser into Place: Gently press the center of the diffuser into place, aligning it perfectly with the bumper. Be sure to apply firm but even pressure, allowing the adhesive to bond.
3.Secure the Edges: Once the center is in place, move on to securing the edges. Gently press along the sides and corners, ensuring the adhesive sticks well to the surface.

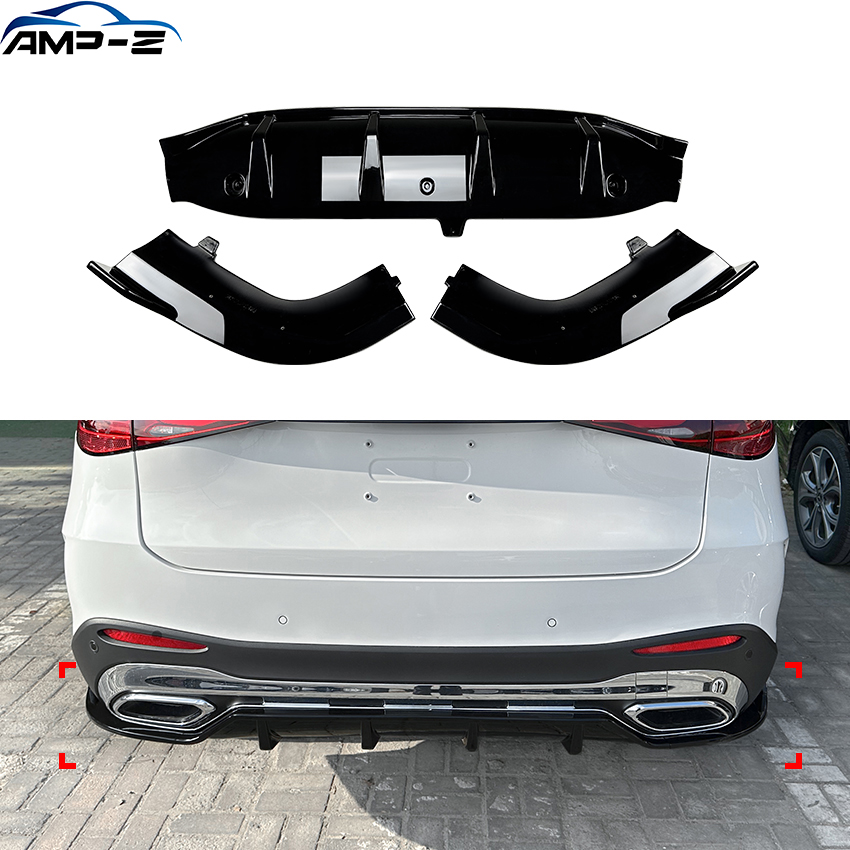

1.Align the Side Sections: The diffuser may come with separate side pieces. Attach these to the main diffuser by aligning them with the center section.
2.Press the Sides into Place: Once aligned, press the side pieces into place, making sure they fit securely. Again, apply firm, even pressure.

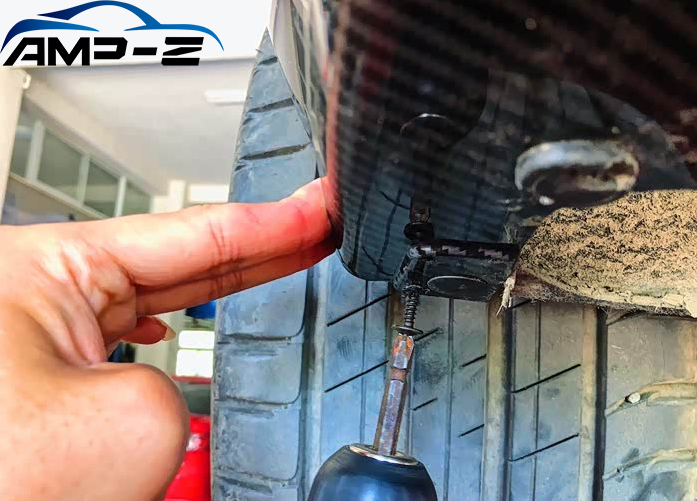

1.Reinstall the Original Bolts (If Applicable): If your vehicle uses screws or bolts to secure the diffuser, now is the time to reinstall them. Use the original bolts that you removed earlier or the new ones provided with the diffuser.
2.Tighten Securely: Tighten the screws or bolts to ensure the diffuser is firmly in place. Be careful not to overtighten, as this could strip the threads or crack the diffuser material.
3.Check Stability: Gently tug on the diffuser to make sure it’s securely fastened. If there’s any movement, double-check the screws or clips to ensure everything is tightened properly.
After installation, it’s essential to double-check that everything is secure and well-positioned. This ensures the diffuser stays in place during driving and that it performs optimally.
1.Double-Check Alignment：Take a step back and inspect the diffuser to ensure it’s aligned properly with the bumper. Check that the edges are flush and that the diffuser sits
symmetrically.
2.Test for Movement：Gently press on different parts of the diffuser to ensure there is no movement. If there is, check the installation and adjust as necessary.
1.Remove Excess Adhesive：If any adhesive has oozed out from the tape or sealant, carefully wipe it away using a clean cloth and a mild adhesive remover.
2.Final Wipe Down: Use a soft cloth to give the newly installed diffuser a final wipe down, ensuring it’s clean and free from fingerprints.
Once your rear diffuser is installed, proper care and maintenance will ensure its longevity and performance.
Curing Time: After installation, it’s crucial to allow the adhesive to cure fully. Avoid washing your car or exposing it to extreme weather conditions for at least 24
hours. This will allow the adhesive to set and bond securely.
Long-Term Care: Check the diffuser regularly for signs of loosening or wear. Over time, the adhesive may weaken, or screws may loosen, so it’s important to inspect
the diffuser every few months.
Even with a perfect installation, problems can arise. Here’s how to troubleshoot some common issues：
Vibration and Noise: If you notice rattling or vibrations, check that all screws are tightened securely. Adding rubber gaskets between the diffuser and the vehicle can
help reduce noise.
Scraping and Ground Clearance: For low-sitting vehicles, make sure the diffuser doesn’t scrape the ground. You can adjust the height or use additional supports to
prevent damage.
Loose Clips or Bolts: Occasionally, clips or bolts may come loose. Perform regular maintenance by checking the diffuser for secure attachment.
According to automotive engineers, rear diffusers are one of the most effective yet often overlooked modifications to improve a car’s handling and aerodynamics. In professional racing, rear diffusers are essential for maintaining stability at high speeds, particularly when cornering.
A performance test comparing the stability of a sports car with and without a rear diffuser shows significant improvement in cornering speeds and overall grip on the road.
Please contact us and our dedicated personnel will guide you through every step of the installation process. This will ensure you don't miss any critical steps and ensure a smooth and successful installation.
We want to hear from you! Do you think a rear diffuser significantly improves car performance? Vote in our interactive poll and share your thoughts with the community.
In a previous article, we mentioned that AMP-Z is a company focused on providing end-to-end services to global B2B customers in the automotive exterior parts industry. The following table summarizes its key advantages.
Advantage Category | ✅Specific manifestations | ✅Core value for users |
Excellent quality and performance | ·Strictly follow or exceed OEM specifications ·Precision design and manufacturing ensure perfect matching of components and reliable function ·Strictly quality controlled and performance tested | ·Vehicle operation is smoother, safer and more efficient ·Provides performance equivalent to or even better than original equipmen ·Reduce failure rate and improve driving confidence |
Durability and reliability | ·Selection of wear-resistant and corrosion-resistant material ·Extend product life | ·Reduce the hassle and cost of frequent parts replacemen ·Long-term use is more worry-free |
Strict quality certification | ·Passed international authoritative quality system certification | ·The quality is endorsed by international standards, so you can buy with confidenc |
Excellent value for money | ·Provide market-competitive prices while ensuring high quality | ·Reduce overall vehicle maintenance costs |
Strong supply chain and services | ·Stable production capacity and reliable supply system | ·Ensure timely availability of required products |
But most importantly, AMP-Z's rear diffusers are easy to install, even for beginners. Our professional team can provide guidance, so there's no need to worry about installation issues.
Installing a rear diffuser is one of the most rewarding modifications you can make to your vehicle. Not only does it enhance your car’s aerodynamics, improving stability and fuel efficiency, but it also adds a sleek, aggressive look to your ride. By following this comprehensive guide, you’ll be able to install your own diffuser with ease and ensure it stays in top condition for years to come.
If you’re ready to make a lasting change to your car’s performance and aesthetics, consider upgrading with a high-quality rear diffuser. Explore a wide selection of diffusers available in various materials and designs to find the one that perfectly suits your vehicle.
