In the world of performance cars, small details can make a big difference. One of the most overlooked yet impactful upgrades is the installation of front canards—those sharp, fin-like aero devices mounted on the front bumper of high-performance cars.Canards aren’t just for show. Properly installed, they can improve front-end downforce, cornering grip, and airflow management, especially at higher speeds. They also give any car an aggressive, track-inspired look that appeals to enthusiasts.This guide goes far beyond a simple installation manual. We’ll break down everything you need to know—what canards are, why they matter, how to install them step by step, mistakes to avoid, performance benefits, expert-level insights, and even a look into the future of aerodynamics.Whether you’re a DIY car enthusiast looking to modify your Focus ST, a Tesla Model 3 owner curious about EV aero upgrades, or a racer wanting every edge on track days, this article is your ultimate resource.

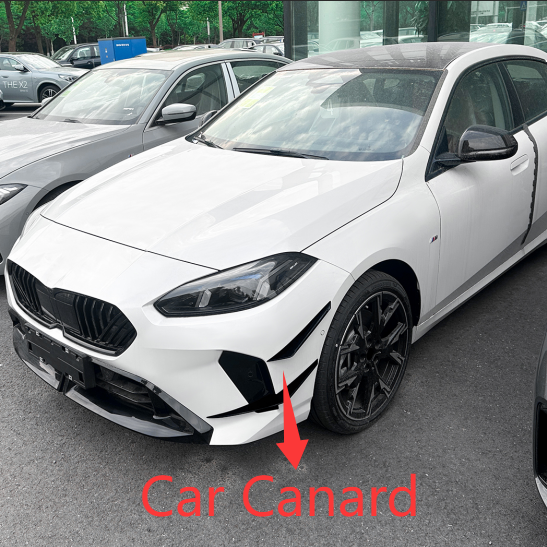

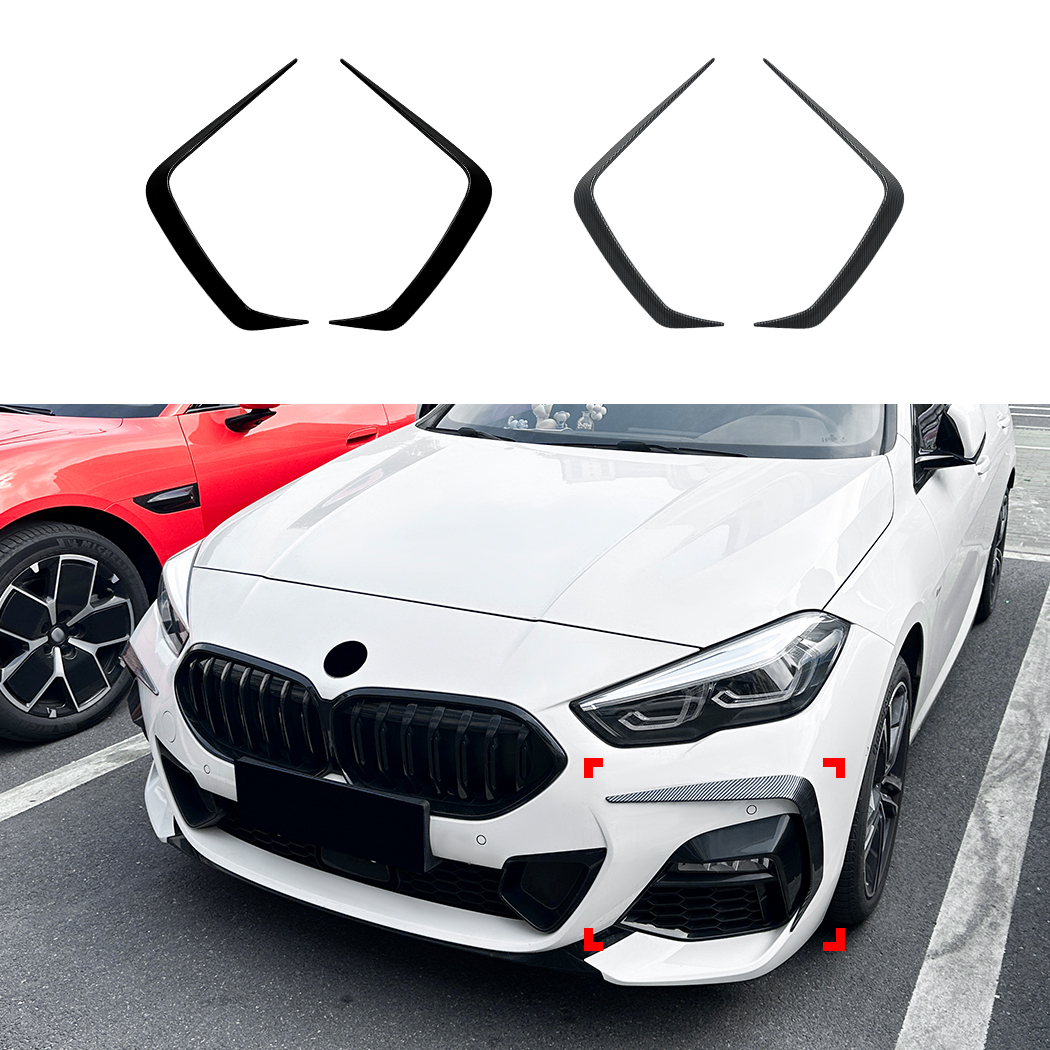

Definition：Canards (also called aero fins or dive planes) are small aerodynamic devices mounted on the corners of a vehicle’s front bumper.
Purpose：Redirect airflow to generate downforce, reduce lift, and improve handling.
Origin：Used extensively in motorsports—from Formula 1 to time-attack cars—before making their way into street-tuned cars.
Style：While they’re functional, canards also add a visual edge, making cars look more aggressive.
Downforce: Car canards deflect air upward, pushing the front of the car down.
Stability: Helps reduce front-end lift at high speeds, improving grip.
Airflow Redirection: Car canards can channel air toward side skirts or away from wheel wells, reducing turbulence.
Cornering: By increasing downforce, they enhance turn-in response and reduce understeer.
Visual Example: Imagine airflow lines hugging the body of the car—with canards, airflow is cleaner and more controlled.
Street Use: Mostly aesthetic, as downforce effects are negligible at city speeds.
Track Use: Functional gains become noticeable above 60–70 mph.
Legal Considerations: In some regions, protruding aero parts can fail roadworthiness inspections—always check local laws.
Expert Insight: Aerodynamic engineers often emphasize that canards are most effective when used with a balanced aero package (splitter + diffuser + spoiler).

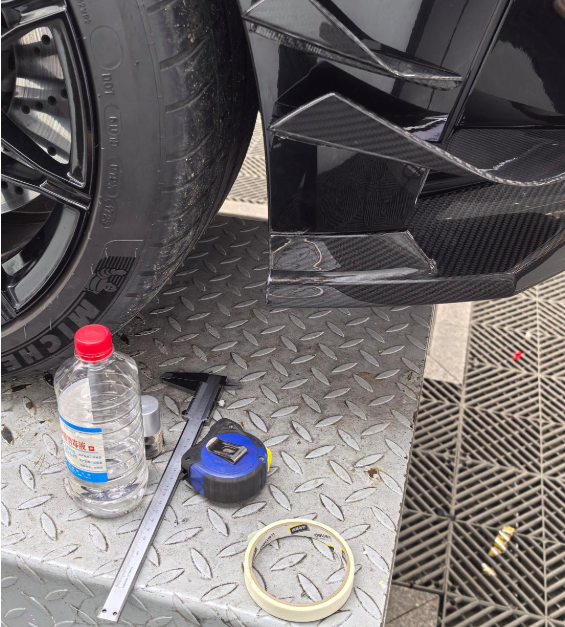

Power drill
Socket wrench set
Masking tape
Measuring tape
Adhesive promoter
Heat gun (optional, for curing in cold climates)
Rubbing alcohol or no-residue cleaner
Microfiber cloths
Gloves and safety glasses
AMP-Z's latest canards products！Please click here！

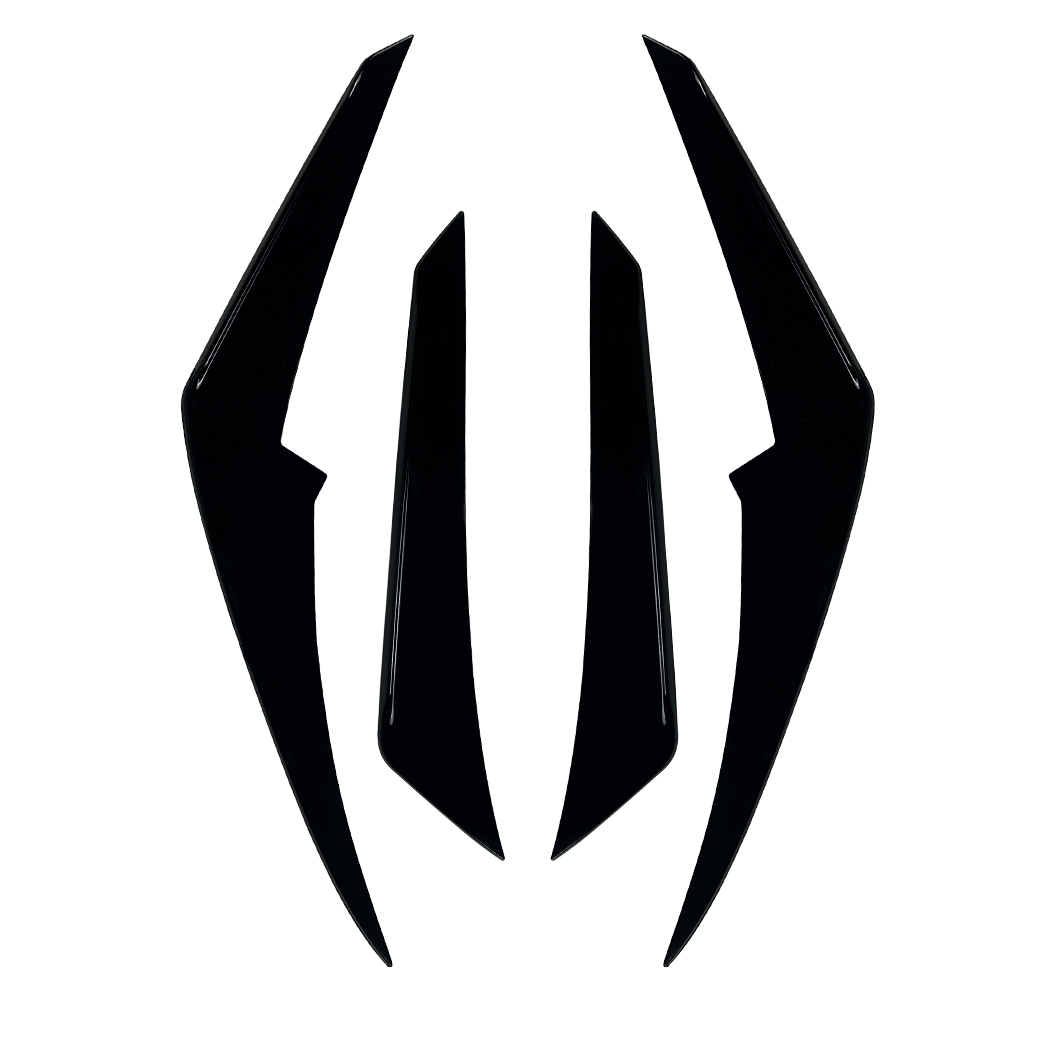

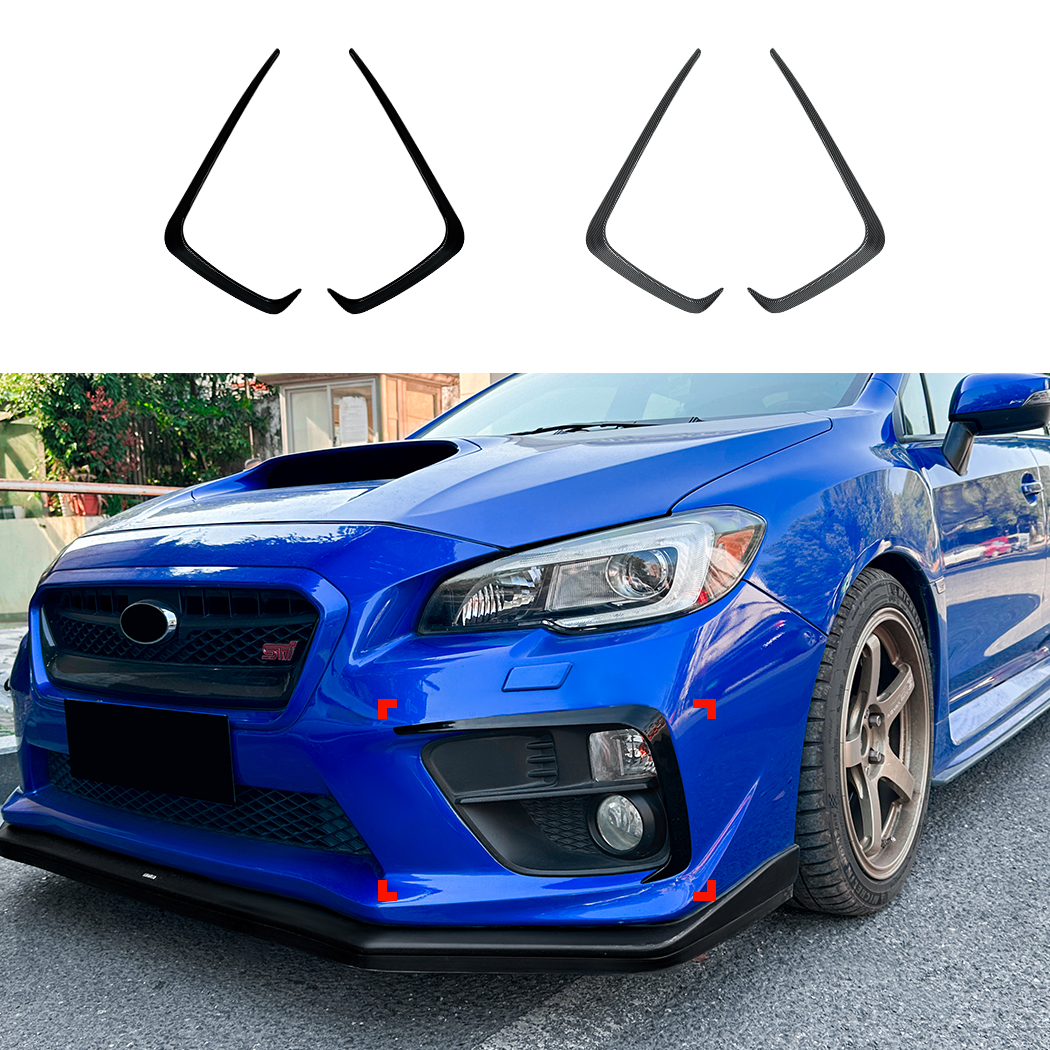

Canard kit (ensure vehicle-specific fitment)
Brackets (steel/aluminum, depending on kit)
Rubber edge guards or trim pieces
Industrial-grade adhesive backing (e.g., 3M VHB tape)
Replacement bumper clips (recommended if bumper is removed)
Warranty Risks: Installing aftermarket canards may void warranties, especially for EVs like Tesla.
Protective Gear: Always wear gloves and goggles when drilling.
Professional Help: If you’re not confident, consider professional installation. Mistakes like over-drilling can ruin a bumper.
There are two primary installation methods, depending on the design of your canards:

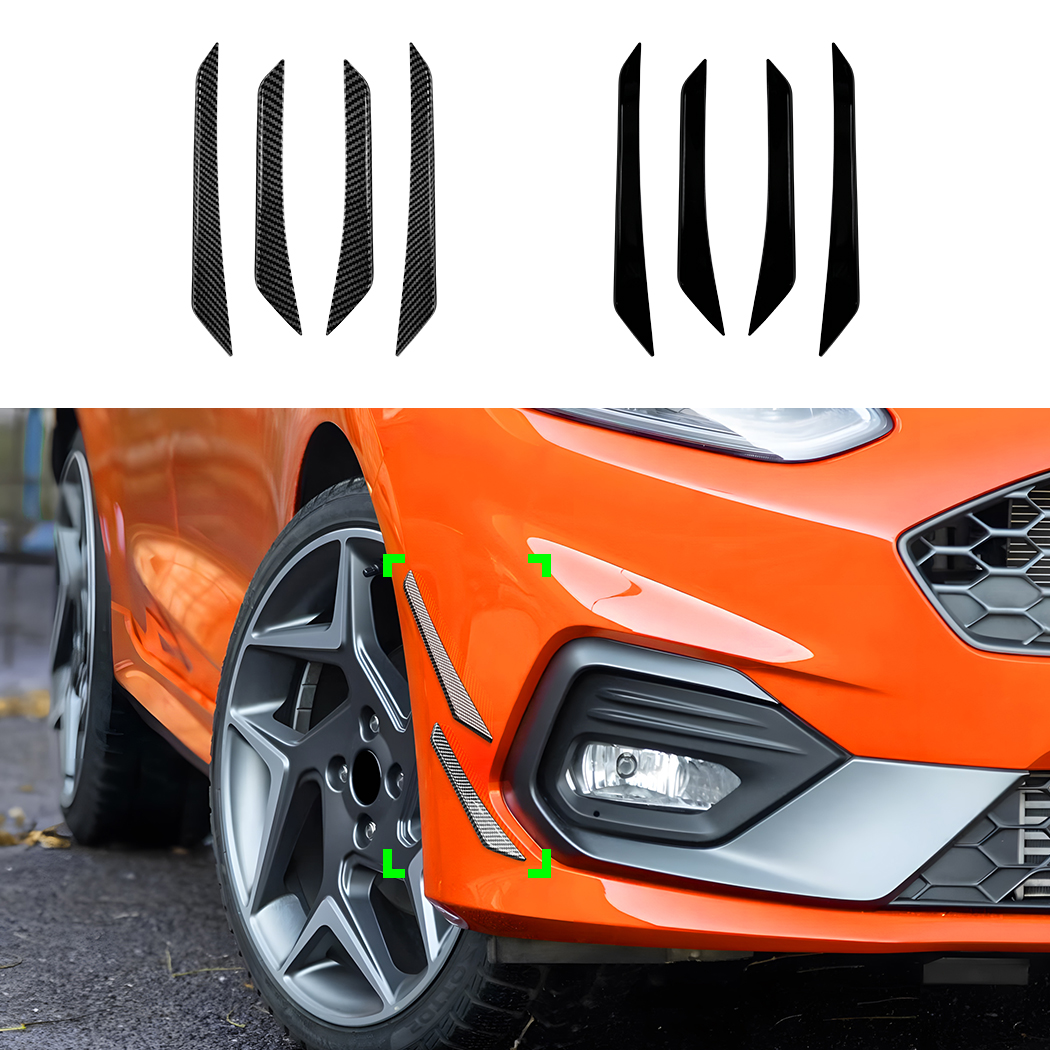

Bracket & Drill Method (e.g., Focus ST/RS kits)
Adhesive Tape Method (e.g., Tesla Model 3 canards)
We’ll cover both.
Use reference points such as bumper ducts, fog light housings, or manufacturer instructions.
Temporarily hold the canard against the bumper and use masking tape to outline its placement.
For adhesive installs, peel a small section of the backing to “hang” the canard while taping its outline.
Clean thoroughly with rubbing alcohol to remove dirt, wax, or coatings.
If PPF (paint protection film) or ceramic coating is present, remove it from the adhesive area. These reduce adhesion strength.
Apply adhesive promoter to ensure long-lasting bonding.
1.Attach brackets to the canard (typically 3 per canard).
2.Test fit the canard, bending brackets inward (from “L” to “V”) for a flush fit.
3.Mark drill points on the bumper using masking tape.
4.Drill carefully with a ¼″ bit—do not over-penetrate (bumpers are thin).
5.Install rubber trim between bracket and canard to fill small gaps.
6.Secure with bolts and nuts from behind the bumper.
For Focus RS and 2015+ ST：bumper removal may be required.
1.Apply adhesive promoter to the outlined area (one side at a time).
2.Peel adhesive backing gradually while pressing canard firmly into place.
3.Apply even pressure across the entire surface.
4.Repeat on the opposite side.
5.Allow adhesive to cure for several hours; avoid moisture for at least 24 hours.
1.Inspect alignment and ensure both sides are symmetrical.
2.Check for gaps—fill with rubber edge guards if needed.
3.Perform a low-speed road test to confirm no rattling or instability.
Misalignment: Always use masking tape guides before committing.
Weak Adhesion: Usually caused by wax, coatings, or skipping promoter.
Large Gaps: Solve with rubber trim or bracket adjustment.
Over-Drilling: Leads to weak bumper mounting points. Drill shallow.
Vibration/Rattling: Caused by loose nuts or insufficient adhesive curing.
Pro Tip: Always test-fit before drilling or peeling adhesive backing.
Wind tunnel data shows canards can add 10–40 lbs of downforce at highway speeds.
On track, improved turn-in response and reduced front-end lift are common benefits.

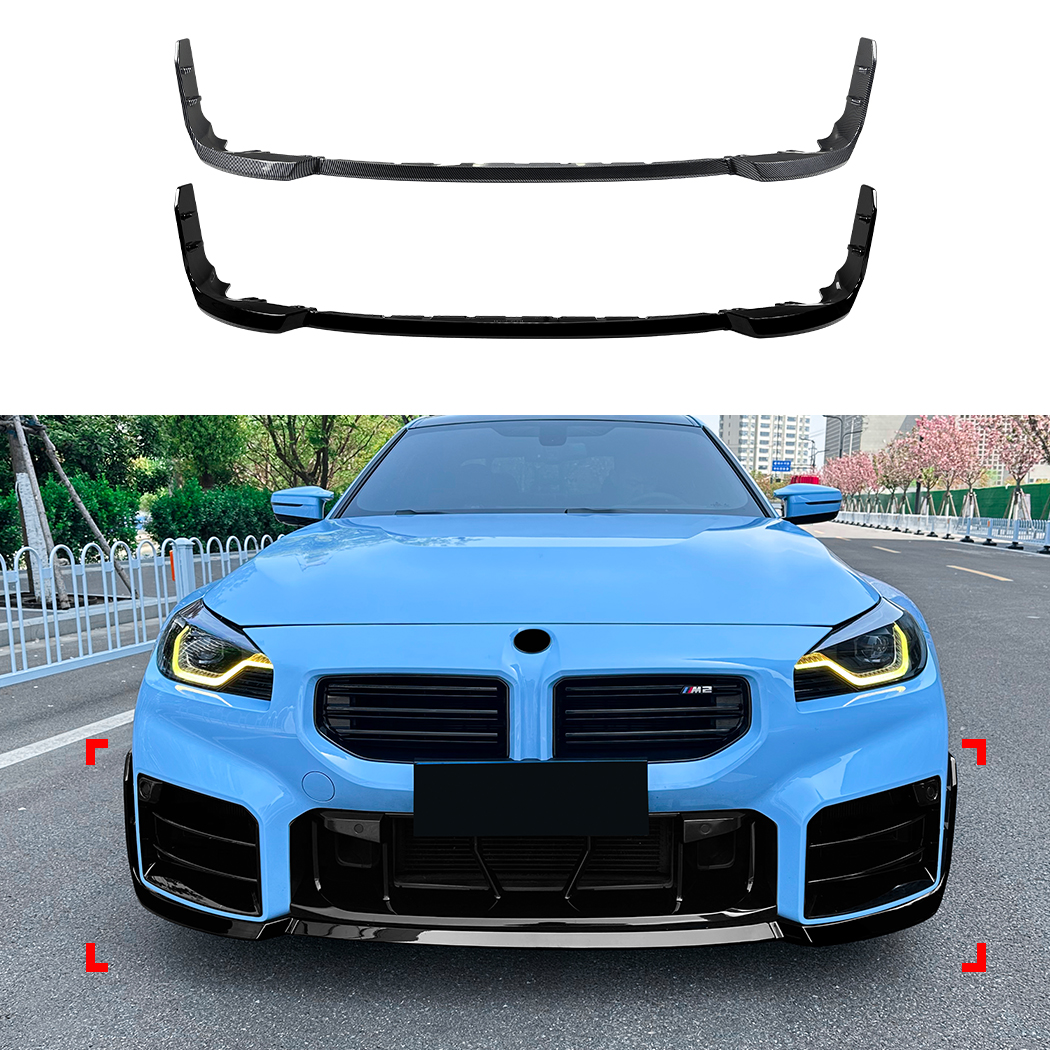

Front splitters：Work with canards to reduce under-bumper airflow.

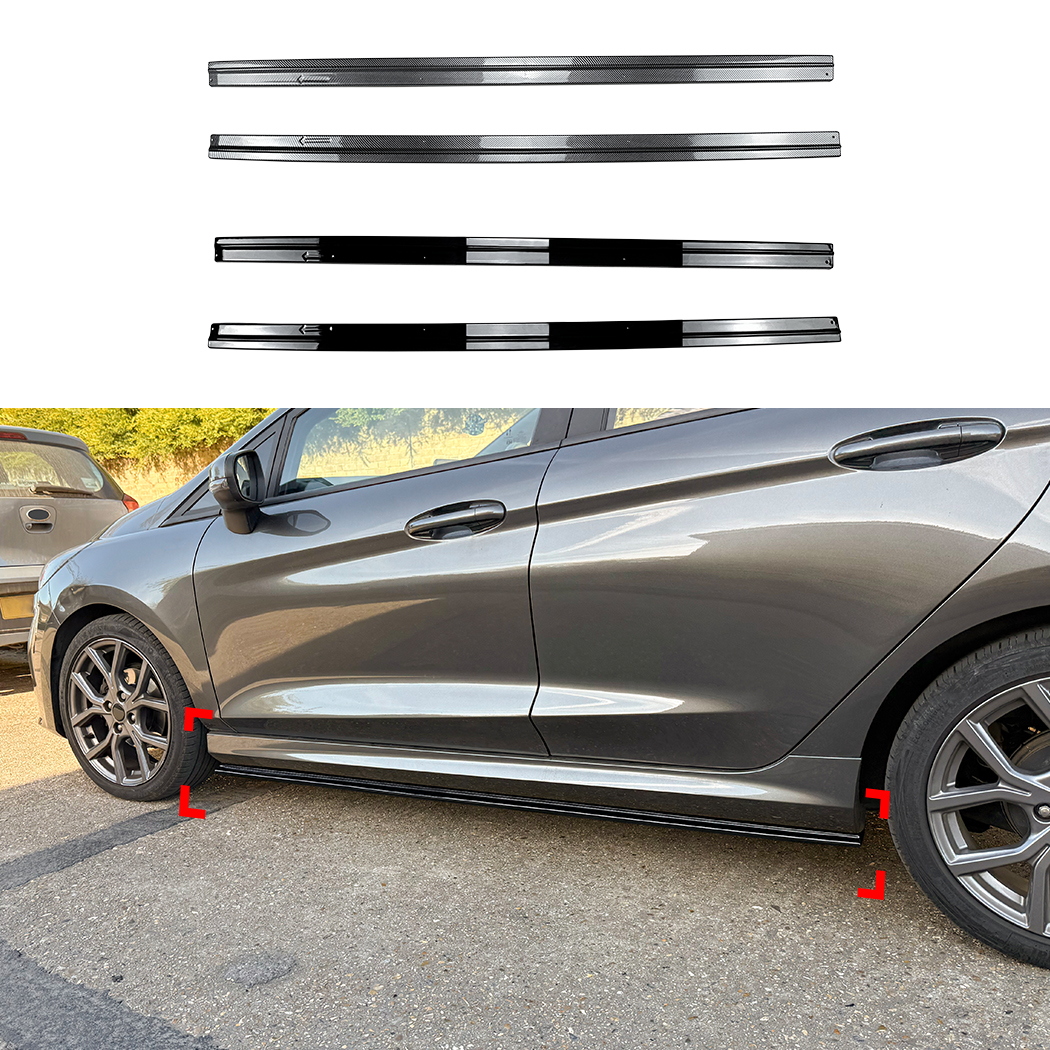

Side skirts：Control side turbulence.

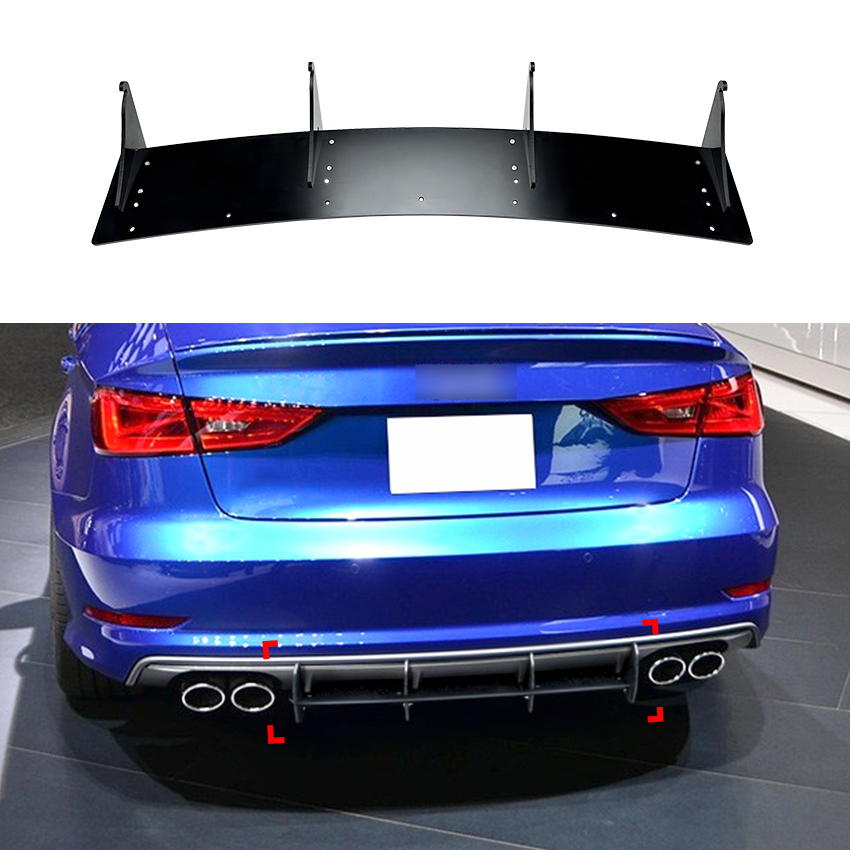

Rear diffusers & spoilers：Balance the aerodynamic load.
Full aero package：Canards alone have limited effect; synergy creates balance.
Other products manufactured by AMP-Z are better when used with car canards！
Street：prioritize style and careful clearance over curbs.
Track：removable or adjustable canards may be ideal.
✅ Verify legality in your area.
✅ Gather all tools and protective gear.
✅ Clean and prep bumper surface.
✅ Test-fit and mark placement with tape.
✅ Drill/adhere carefully (depending on method).
✅ Let adhesives cure fully.
✅ Inspect alignment and perform test drive.
CFD Simulation：Enthusiasts with access to software can test airflow virtually before installation.
Custom Brackets：Fabricators may create reinforced brackets for track use.
Expert Opinion：Aerodynamicist notes that “canards are most effective when used in harmony with a splitter and rear aero.”
Case Study：Time attack teams often adjust canards mid-season based on track data.
AMP-Z is a leading manufacturer of automotive exterior accessories, specializing in front splitters, rear spoilers, car canards, and rear diffusers. We offer OEM customization services to enhance your product's market competitiveness, combining high quality with competitive pricing. With years of experience in volume canards supply, we provide reliable support to retailers, wholesalers, and distributors worldwide. From initial design concept to mass production, AMP-Z is your trusted partner. Working with AMP-Z, you'll receive reliable manufacturer service and optimal performance for your brand image.
Wider adoption of carbon composites for weight and strength.
3D-printed aero parts for custom applications.
Active canards that adjust angle based on speed (seen in concept EVs).
Potential integration with Tesla’s software-driven performance modes.
EV tuning is a growing market, with canards seen as both aesthetic and functional.
Manufacturers exploring modular aero kits for personalization.
DIY Quiz: Is a canard upgrade right for your car? (flowchart suggestion).
Community Call: Share photos of your install for feature consideration.
Poll: Which method do you prefer—bracket or adhesive?
Downloadable PDF: Free installation checklist for readers.
Front canards are more than just cosmetic add-ons—they’re aerodynamic tools that can improve handling, stability, and performance when installed correctly. Whether you use the bracket & drill method or the adhesive method, success comes down to careful prep, proper alignment, and attention to detail.For casual enthusiasts, canards bring aggressive styling and a taste of motorsport. For serious drivers, they’re one more piece of the puzzle in building a balanced, high-performance aero package.As materials evolve and active aero becomes mainstream, the humble canard will continue to adapt and play a role in the future of performance vehicles.
So—are you ready to take your car’s aero and style to the next level?
